Highlight:
Box Robotic Palletizer Machine
, Carton Robotic Palletizer Machine
, Automatic bag palletizing system
Type: |
Robotic Palletizer Machine |
Production Capacity: |
5bag/min, 20bag/min, 7bag/min, 6bag/min, 40bag/min, 9bag/min, 25bag/min, 8bag/min, 15bag/min, 10bag/min, 50bag/min, 30bag/min, 35bag/min |
Applicable Industries: |
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops |
Weight (KG): |
1400 |
Showroom Location: |
Canada, United Kingdom, United States, Italy, France, Germany |
Condition: |
New |
Function: |
Palletizing |
Application: |
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco |
Packaging Type: |
Cartons, Bottles, Stand-up Pouch, Bags, Film, Foil, Pouch, Case |
Packaging Material: |
Plastic |
Automatic Grade: |
Automatic |
Driven Type: |
Electric |
Voltage: |
380V 50/60HZ |
Dimension(L*W*H): |
2750*950*3250 |
Warranty: |
2 Years |
Key Selling Points: |
Long Service Life |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Gearbox, Other |
Machine Type: |
Vertical Automatic Palletizing Machine |
E Automated Palletizer: |
Automatic Palletizer |
Palletizing System: |
Pallet Stacking Machin |
Model Name: |
Robotic Palletizer |
Port: |
Qingdao, Shanghai |
Palletizer Definition: |
Palletizer Equipment |
Palletizing Application: |
Palletizing Area |

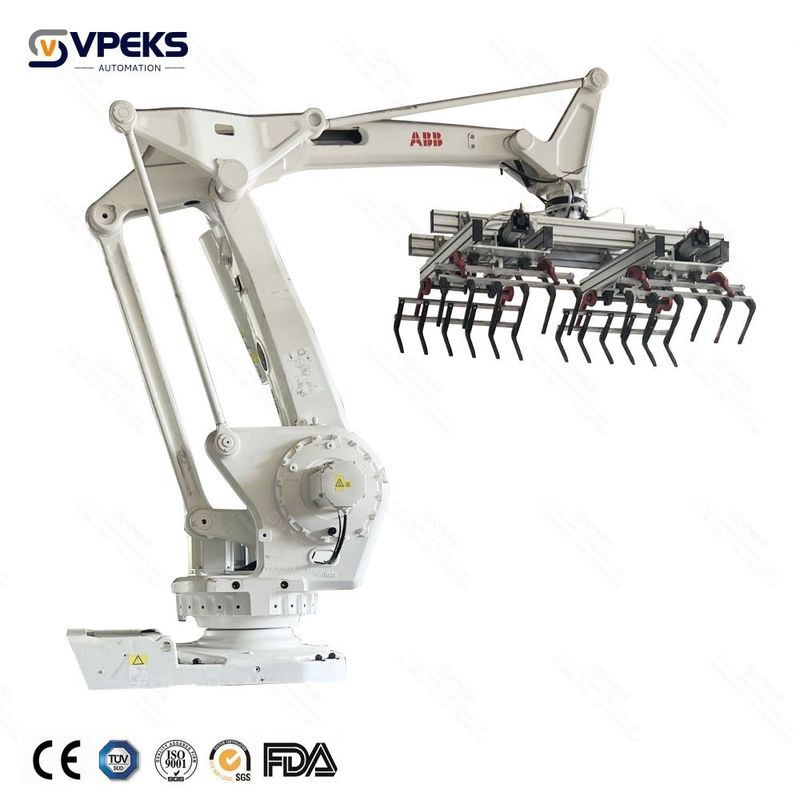

Carton Box Automatic Robotic Palletizer Machine With Robotic Arm
Product Description:
Automatic Palletizing Pallet Stacking Machine Robotic Arm Bag Palletizer For Carton Box
Automating the palletizing of bags using a robotic bag palletizer machine can provide one of the fastest returns on investment! These systems use a palletizing robot arm to automatically stack bags, boxes, buckets, and more on pallets for shipping or storage. They can operate 24/7, effectively eliminating the need for a team of operators at the end of a packaging line stacking heavy bags on pallets. They are space saving solutions that can be oriented in any direction to accept bag inflow from a new or existing bagging system.
If you are looking for a palletizer machine for sale, you can contact us today. We are one of the leading automation technology companies in the industry, with a wide range of palletizing solutions for various applications and products. We can offer you a robotic case palletizer, which is specially designed to handle cases, cartons, and trays. A robotic case palletizer can improve the speed, accuracy, and safety of your palletizing operations, as well as reduce labor costs and product damage. A robotic case palletizer can also be integrated with other automation systems, such as conveyors, scanners, and labelers. Our automation technology companies can provide you with a customized solution that meets your specific needs and budget.
Technical Parameters:
|
IRB660 ABB Robot Arm
|
|
Variants 1: IRB 660-180
|
Variants 2:IRB 660-250
|
|
Maximum Load of Robot: 180 kg
|
Maximum Load of Robot: 250 kg
|
|
Maximum Reach: 3.15m
|
Maximum Reach: 3.15m
|
|
Repeatability: 0.1 mm
|
Repeatability: 0.1 mm
|
|
Path repeatability: 0.3 mm
|
Path repeatability: 0.3 mm
|
|
Controller: IRC5 Single cabinet, Dual cabinet
|
Controller: IRC5 Single cabinet, Dual cabinet
|
|
Application
|
PALLETISING, Handling of parts
|
|
Robot Motion Speed
|
|
Axis 1: 130°/s
|
Axis 1: 95°/s
|
|
Axis 2: 130°/s
|
Axis 2: 95°/s
|
|
Axis 3: 130°/s
|
Axis 3: 95°/s
|
|
Axis 6: 300°/s
|
Axis 6: 240°/s
|
|
Axis working range
|
|
Axis 1: +180° to -180° Option +220° to -220°
|
Axis 1: +180° to -180° Option +220° to -220°
|
|
Axis 2: +85° to -42°
|
Axis 2: +85° to -42°
|
|
Axis 3: +120° to -20°
|
Axis 3: +120° to -20°
|
|
Axis 6: +300° to -300° Default
+150 rev. to –150 rev. Max
|
Axis 6: +300° to -300° Default
+150 rev. to –150 rev. Max
|
Automating the palletizing of bags using a robotic industrial palletizer can provide one of the fastest returns on investment! These systems use a palletizing robot arm to automatically stack bags, boxes, buckets, and more on pallets for shipping or storage. They can operate 24/7, effectively eliminating the need for a team of operators at the end of a packaging line stacking heavy bags on pallets. They are space saving solutions that can be oriented in any direction to accept bag inflow from a new or existing bagging system. One of the benefits of using an industrial palletizer is that it can improve the quality and consistency of your pallet loads, as well as reduce the risk of product damage and worker injury. An industrial palletizer can also be integrated with other packaging automation solutions, such as bagging machines, conveyors, and industrial stretch wrap dispensers. We also offer automated container unloading solutions that can feed bags directly to the palletizer from the container.
We have a range of industrial palletizers to suit your needs and budget. You can choose from different types of palletizers, such as conventional palletizers, which use mechanical devices to arrange and stack bags on pallets, or robotic palletizers, which use a robotic arm to pick and place bags on pallets. You can also choose from different levels of palletizers, such as high level palletizers, which have a higher elevation and require a gravity conveyor to feed bags to the palletizer, or low level palletizers, which have a lower elevation and require a belt conveyor to feed bags to the palletizer. Our industrial palletizers can handle a variety of products, such as grains, seeds, fertilizers, chemicals, pet food, and more. They can also handle different types of bags, such as paper, plastic, woven, and laminated. They can also handle different types of pallets, such as wood, plastic, and metal.
Our industrial palletizers have a compact and modular design that can fit in any space. They can also be oriented in any direction to suit your layout and workflow. Our industrial palletizers have a simple and intuitive interface that allows you to easily control and monitor the palletizing process. They also have safety features that prevent accidents and injuries. They are also easy to maintain and service, with minimal downtime and costs.
Our industrial palletizers are made from high-quality materials and components that ensure durability and performance. They are also backed by our palletizer companies’ warranty and service support. We are one of the leading palletizer companies in the industry, with years of experience and expertise. We are also an authorized distributor of ABB palletizers, which are known for their innovation and excellence.
If you are interested in our industrial palletizers or other packaging automation solutions, please contact us today. We will be happy to provide you with a free quote and a customized solution for your palletizing needs.
FAQ:
Q: What’s the main difference in service between VPEKS and other manufacturers?
(1)Vpeks’ salesmen are not only sellers but also seasoned engineers. They could help you a lot by providing the best solution and proper machines.
(2)Vpeks provide integrated solutions for clients. Besides providing high-quality machinery, in-time online after-sale service, and on-site installation service, we could help clients choose suitable package raw materials, calculate site area, input-output ratio, electricity, air supply, etc.
Q: How to choose a proper packing machine?
If you need packing machines for small bags, firstly please confirm your bag type. Secondly, according to your product’s characteristics choose a dosing system(screw type, pump type, etc). Thirdly, according to bag size choose the machine model. If you need a packing machine for big bags(5kg to 50kg), just tell us your target output per hour and the name of your raw materials.
Q: What’s the main difference in machines between VPEKS Automation and other manufacturers?
(1)The basic manufacturing principle of VPEKS is to use international brand components as much as possible. Almost 95% to 100% of components of them are made by OMRON>, SIEMENS>, ABB>, Schnieder>, AirTAC>, NSK>, etc. In this case, our foreign clients will not worry about the lifespan and replacement issues in the future.
(2)In product design and program design, we adhere to the principles of simplicity and ease of use. After all, the purpose of automation is to save labor costs not to create operation costs.
Q: How long does it usually take to receive the equipment?
The production time of different machines ranges from 10 days to 30 working days. As for shipping issues, there are different shipping ways for options. For most countries, we could help clients to do Door to Door shipping service. Air shipping is fast but expensive, it’s a good choice for urgent orders, it only takes 7-10 days max. Sea shipping is the most economical shipping way, depending on different destination seaports, the shipping times range from 15 to 45 days.
Q: What’s the guarantee of the machine?
We have 1 1-year guarantee for all the machines. If any components are broken during 1 year, we will send replacements to clients for free by express. And we will take videos to teach you how to replace it. Also, we have several service centers in different countries. We offer lifetime technical support. Since we adopt international components, clients can easily source spare parts from local after 1 year.
Q: How will my machines be installed if necessary? How long does the installation take?
We’ll dispatch an engineer to your facility, help to install the machine and train your staff on how to operate it. The customer pays for round-trip airfare, accommodation, and USD150/day/person. Depending on the machines you ordered, it will take about 7 to 30 days.
Q: Do you have any references?
We have customer success cases in most countries. Suppose we get permission from a customer who imports a machine from us.
Q: What is the packing speed of the machine?
The actual speed may be influenced by factors as follows: Material: viscosity, density, volume, weight, etc. Machine: the speed of the dosing system (piston for liquid, combination scale for granules, and augur filler for powder)
Q: Do you have certificates?
We have been certified by reputable certification bodies.
Q: How do I test the machine before shipping?
Once the machine is finished, we will run over 72 hours and send test videos to you. Of course, you can come in person or hire a third-party organization to inspect our factory.
Q: What are your terms of payment?
Payment<=5000 USD, 100% in advance. Payment>=5000 USD, 30% T/T in advance, balance before shipment.
Q: How to choose a proper automatic palletizing machine?
Please tell us the pallet size, and target output( bags/hour). We will recommend the most suitable model to you.
