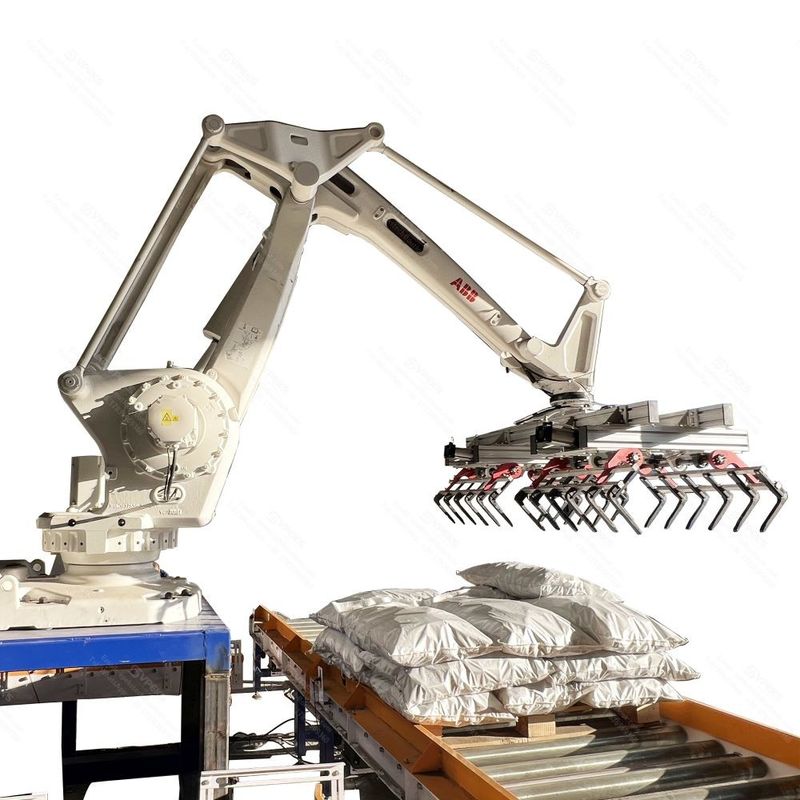

ABB IRB660 Industrial Palletizer Robotic Palletizer Machine 1200-2000BPH

Product Details

Place of Origin: Henan

Brand Name: VPEKS Automation

Certification: CE, UL, ETL, MD, RoHS

Model Number: IRB660 ABB Robot Arm

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $13,000.00/sets >=1 sets

Packaging Details: plywood case for vertical palletizing

Delivery Time: 20 working days

Payment Terms: T/T, L/L, D/P, D/A

Supply Ability: 200 Set/Sets per Month

Get Best Price
Highlight:

Industrial Robotic Palletizer Machine

,

ABB IRB660 Robotic Palletizer Machine

,

2000BPH industrial palletizer

Type:
Robotic Palletizer Machine
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Home Use
Showroom Location:
Turkey, United Kingdom, United States, France, Philippines, Indonesia, UAE, Ukraine, Australia
Application:
Beverage, Chemical, Machinery & Hardware, APPAREL
Packaging Type:
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Foil, Case
Packaging Material:
Plastic, Paper, Metal, Glass
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380v/220v
Dimension(L*W*H):
1100*1000*2600mm
Weight:
1800 KG
Warranty:
1 Year
Key Selling Points:
High-accuracy
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor, PLC, Pressure Vessel, Engine
Model Name:
ABB IRB660 Robot Arm
Packing Speed:
1200-2000bags Per Hour
Port:
Qingdao, Shanghai
Bag Palletizer Machine:
Palletizer Companies
Box Palletizer Machine:
Industrial Palletizer
Type:
Robotic Palletizer Machine
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Home Use
Showroom Location:
Turkey, United Kingdom, United States, France, Philippines, Indonesia, UAE, Ukraine, Australia
Application:
Beverage, Chemical, Machinery & Hardware, APPAREL
Packaging Type:
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Foil, Case
Packaging Material:
Plastic, Paper, Metal, Glass
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380v/220v
Dimension(L*W*H):
1100*1000*2600mm
Weight:
1800 KG
Warranty:
1 Year
Key Selling Points:
High-accuracy
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor, PLC, Pressure Vessel, Engine
Model Name:
ABB IRB660 Robot Arm
Packing Speed:
1200-2000bags Per Hour
Port:
Qingdao, Shanghai
Bag Palletizer Machine:
Palletizer Companies
Box Palletizer Machine:
Industrial Palletizer
ABB IRB660 Industrial Palletizer Robotic Palletizer Machine 1200-2000BPH

Product Description:

ABB IRB660 Industrial Palletizer Robotic Palletizer Machine Palletizing Machine

The IRB 660 4-axis robot comes in two versions: one with a payload handling capacity of 180 kg and a high-performance 250 kg, in both cases with a range of 3.15 m. The IRB 660 is the latest generation abb palletizer that is considered faster than its predecessor. It can work with various products, such as bags, boxes, buckets, and more, making it a versatile bag palletizer machine and box palletizer machine.



Engine power optimization and motion performance ensure significantly shorter cycle times and high throughput. It has an IP67 degree of protection making the performance consistent even in the most difficult environments. It can also work with an industrial stretch wrap dispenser, which can secure the pallets with straps for extra stability and safety.



Equipped with the IRC5 controller for quick and easy use, floor mounting. Equipped with the latest IRC5 controller IRC5 is ABB’s fifth generation robot controller. Its motion control technology, TrueMove & QuickMove, is key to the robot’s performance in terms of accuracy, speed, cycle time, programmability, and synchronization with external devices. Based on advanced dynamic modeling, the IRC5 optimizes the performance of the robot for the physically shortest possible cycle time (QuickMove) and precise path accuracy (TrueMove). Together with a speed-independent path, predictable and high-performance behavior is delivered automatically, with no tuning required by the programmer.



RAPID programming language The perfect combination of simplicity, flexibility, and power. RAPID is a truly unlimited language with hosts of advanced features and powerful support for many process applications. Communication The IRC5 supports the state-of-the-art field for I/O and is a well-behaved node in any plant network. Sensor interfaces, remote disk access, and socket messaging are examples of the many powerful networking features. The IRC5 can also communicate with other palletizer companies and systems, such as the high speed palletizer, which can stack and unstack pallets at a fast rate, and the automatic depalletizer, which can remove layers of products from pallets without manual intervention.



Features:

Some of the features of the IRB 660 4-axis robot are:

  • It is a conventional palletizer that uses a mechanical arm to stack and unstack products on pallets, with a high speed and accuracy.

  • It is an abb palletizer, which means it is developed by ABB, one of the leading palletizer companies and packaging automation solutions providers in the world.

  • It is a bag palletizer machine and a box palletizer machine, which means it can handle different types of products, such as bags, boxes, buckets, and more, with ease and efficiency.

  • It is an industrial palletizer, which means it can operate in harsh and demanding environments, thanks to its IP67 degree of protection and its robust design.

  • It can work with an industrial stretch wrap dispenser, which can secure the pallets with straps for extra stability and safety.

  • It can work with other systems, such as the high speed palletizer, which can stack and unstack pallets at a fast rate, and the automatic depalletizer, which can remove layers of products from pallets without manual intervention.

  • It is equipped with the IRC5 controller, which is ABB’s fifth generation robot controller, and the RAPID programming language, which are both powerful and user-friendly tools that enable the optimal performance and customization of the robot.



Technical Parameters:

IRB660 ABB Robot Arm

Variants 1: IRB 660-180

Variants 2:IRB 660-250

Maximum Load of Robot: 180 kg

Maximum Load of Robot: 250 kg

Maximum Reach: 3.15m

Maximum Reach: 3.15m

Repeatability: 0.1 mm

Repeatability: 0.1 mm

Path repeatability: 0.3 mm

Path repeatability: 0.3 mm

Controller: IRC5 Single cabinet, Dual cabinet

Controller: IRC5 Single cabinet, Dual cabinet

Application

PALLETISING, Handling of parts

Robot Motion Speed

Axis 1: 130°/s

Axis 1: 95°/s

Axis 2: 130°/s

Axis 2: 95°/s

Axis 3: 130°/s

Axis 3: 95°/s

Axis 6: 300°/s

Axis 6: 240°/s

Axis working range

Axis 1: +180° to -180° Option +220° to -220°

Axis 1: +180° to -180° Option +220° to -220°

Axis 2: +85° to -42°

Axis 2: +85° to -42°

Axis 3: +120° to -20°

Axis 3: +120° to -20°

Axis 6: +300° to -300° Default
+150 rev. to –150 rev. Max

Axis 6: +300° to -300° Default
+150 rev. to –150 rev. Max





FAQ:

Q: Do you have any references?
We have customer success cases in most countries. Suppose we get permission from a customer who imports a machine from us.



Q: What is the packing speed of the machine?
The actual speed may be influenced by factors as follows: Material: viscosity, density, volume, weight, etc. Machine: the speed of the dosing system (piston for liquid, combination scale for granules, and augur filler for powder)



Q: How to choose a proper packing machine?
If you need packing machines for small bags, firstly please confirm your bag type. Secondly, according to your product’s characteristics choose a dosing system(screw type, pump type, etc). Thirdly, according to bag size choose the machine model. If you need a packing machine for big bags(5kg to 50kg), just tell us your target output per hour and the name of your raw materials.



Q: How to choose a proper automatic palletizing machine?
Please tell us the pallet size, and target output( bags/hour). We will recommend the most suitable model to you.


Q: What’s the main difference in machines between VPEKS Automation and other manufacturers?
(1)The basic manufacturing principle of VPEKS is to use international brand components as much as possible. Almost 95% to 100% of components of them are made by OMRON>, SIEMENS>, ABB>, Schnieder>, AirTAC>, NSK>, etc. In this case, our foreign clients will not worry about the lifespan and replacement issues in the future.

(2)In product design and program design, we adhere to the principles of simplicity and ease of use. After all, the purpose of automation is to save labor costs not to create operation costs.



Q: What’s the main difference in service between VPEKS and other manufacturers?
(1)Vpeks’ salesmen are not only sellers but also seasoned engineers. They could help you a lot by providing the best solution and proper machines.

(2)Vpeks provide integrated solutions for clients. Besides providing high-quality machinery, in-time online after-sale service, and on-site installation service, we could help clients choose suitable package raw materials, calculate site area, input-output ratio, electricity, air supply, etc.



Q: How long does it usually take to receive the equipment?
The production time of different machines ranges from 10 days to 30 working days. As for shipping issues, there are different shipping ways for options. For most countries, we could help clients to do Door to Door shipping service. Air shipping is fast but expensive, it’s a good choice for urgent orders, it only takes 7-10 days max. Sea shipping is the most economical shipping way, depending on different destination seaports, the shipping times range from 15 to 45 days.



Q: What’s the guarantee of the machine?
We have 1 1-year guarantee for all the machines. If any components are broken during 1 year, we will send replacements to clients for free by express. And we will take videos to teach you how to replace it. Also, we have several service centers in different countries. We offer lifetime technical support. Since we adopt international components, clients can easily source spare parts from local after 1 year.




Q: Do you have certificates?
We have been certified by reputable certification bodies.



Q: How do I test the machine before shipping?
Once the machine is finished, we will run over 72 hours and send test videos to you. Of course, you can come in person or hire a third-party organization to inspect our factory.



Q: What are your terms of payment?
Payment<=5000 USD, 100% in advance. Payment>=5000 USD, 30% T/T in advance, balance before shipment.



Q: How will my machines be installed if necessary? How long does the installation take?
We’ll dispatch an engineer to your facility, help to install the machine and train your staff on how to operate it. The customer pays for round-trip airfare, accommodation, and USD150/day/person. Depending on the machines you ordered, it will take about 7 to 30 days.
