High Load Automated Palletising Machine For Drum Palletizing

In the range of robot palletizer of VPEKS, the single-column robot palletizer of VPEKS represents the simplest and most compact model. The single-column robot palletizer of VPEKS can handle bags containing stable, aerated or powdery products, permitting partial overlapping of the bags in the layer along both the top and sides, offering flexible format changes. Its extreme simplicity makes it possible to palletize even on pallets sitting directly on the floor.

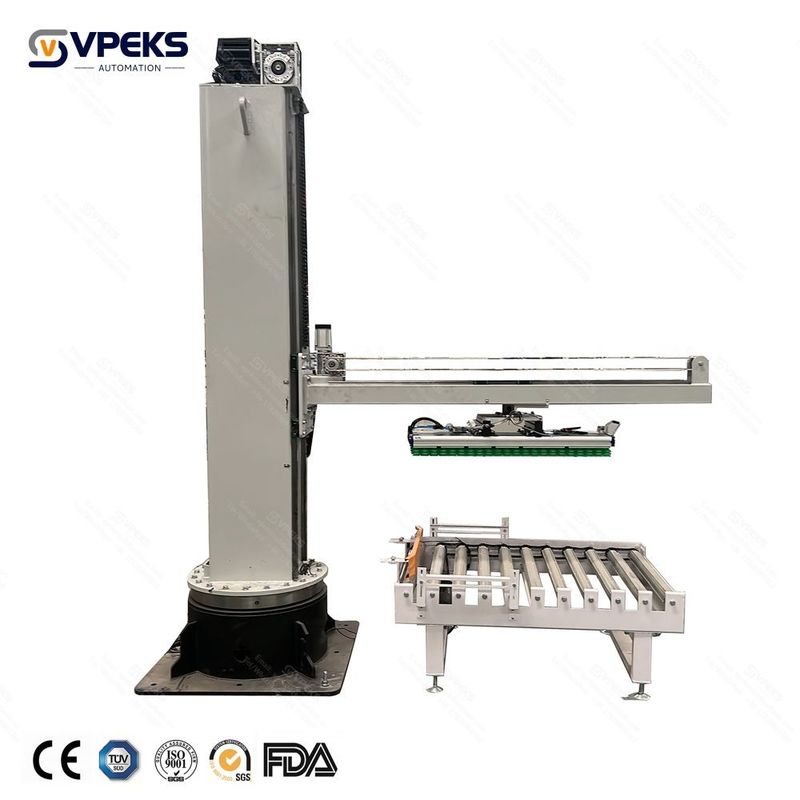

The machine features a sturdy rotating column with a rigid horizontal arm connected to it that can slide vertically along the column. The horizontal arm has a bag pick-up pincer mounted on it that slides along it, rotating around its vertical axis. The machine takes the bags one at a time from the roller conveyor on which they arrive and places them at the point assigned by the program. The horizontal arm descends to the necessary height so that the pincer can pick up the bags from the bag feed-in roller conveyor and then it ascends to permit free rotation of the main column. The pincer traverses along the arm and rotates around its axis to place the bag in the position assigned by the programmed palletizing pattern. The arm is positioned at the required height and the pincer opens to place the bag on the pallet being formed. At this point, the machine returns to the starting point and is ready for a new cycle.

The special construction solution gives the single-column robot palletizer of VPEKS unique features:
/ Possibility of palletizing from several pickup points, to handle bags from different bagging lines in one or more palletizing points
/ Possibility of palletizing on pallets set directly on the floor
/ Very compact size
/ The column palletizer machine of VPEKS features a PLC-controlled operating system

Single-column robot palletiser made by VPEKS Automation is an Automated Palletizer that represents the simplest and most compact model in the range of robot palletizers of VPEKS. Single-column robot palletiser made by VPEKS Automation is an Automated Palletizer that represents the simplest and most compact model in the range of robot palletizer of VPEKS. Single-column robot palletiser made by VPEKS Automation is an Automated Palletizer that represents the simplest and most compact model in the range of robot palletizer of VPEKS. Single-column robot palletiser made by VPEKS Automation is an Automated Palletizer that represents the simplest and most compact model in the range of robot palletizer of VPEKS. Single-column robot palletiser made by VPEKS Automation is an Automated Palletizer that represents the simplest and most compact model in the range of robot palletizer of VPEKS.
